CM Series Mooring

The CM Series Mooring Buoy has been designed to provide the ultimate in strength, durability and boat protection, giving increased security to any mooring. We make two versions of mooring iron, one from galvanized steel with a protective vinyl-coated eye, and the other from durable stainless steel. To provide strength and security, each version features a 1.3 cm (0.5 in) central rod, a large eye 11 cm (4.4 in) diameter, and a swivel 4 cm (1.5 in) wide. The CM-Series is a long tested standard in mooring buoy design and is prefered by many boaters worldwide. The CM is available in three color versions: fluorescent red, all white or white with a blue stripe.


White	White Ss	Red	Red Ss

IMAGES OF ACTUAL COLORS MAY VARY

Despite every effort to accurately depict each product’s color when reproduced, color differences may arise from color monitors and print capabilities. The screen images are intended as a guide only and should not be regarded as absolutely correct.

Safety

Mooring buoy diagram and mooring ball chain instructions

In a hard blow, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power – just be sure to check other boats in the moorage first to ensure you won’t foul another moored boat. In adverse conditions, a second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails. All shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.

CM Sizing

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Add another 25% to the total weight for safety. Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

CM Series Features

Mooring Iron made with vinyl-protected galvanized or stainless steel
Large reinforced 11 cm (4.4 in) eye and 4 cm (1.5 in) swivel
Soft vinyl surface protects boat finishes
Polyform's unique vinyl valve seals securely
Even wall thickness for maximum strength and durability
Limited three year warranty

CM Series On-line Stores

Clicking on the following links will take you away from the Polyform website

Web Stores

Local Retailers

Enter your address, city or postal code, or country to find your local store.

Moorings Metric Size Chart

Model	CM-2-SS	CM-2	CM-3-SS	CM-3
Size (diameter x length)	34.3 x 45.7 cm	34.3 x 45.7 cm	43.2 x 55.9 cm	43.2 x 55.9 cm
Tube Diameter	1.6 cm	1.6 cm	1.6 cm	1.6 cm
Circumference	107.8 cm	107.8 cm	138.7 cm	138.7 cm
Volume	25 liters	25 liters	44.7 liters	44.7 liters
Size (iron length w/ shackle)	78.7 cm	78.7 cm	88.9 cm	88.9 cm
Pieces per carton	1	1	1	1

Moorings US Size Chart

Model	CM-2-SS	CM-2	CM-3-SS	CM-3
Size (diameter x length)	13.5 x 18 in	13.5 x 18 in	17 x 22 in	17 x 22 in
Tube Diameter	0.625 in	0.625 in	0.625 in	0.625 in
Circumference	42.4 in	42.4 in	53.4 in	53.4 in
Volume	6.6 gal	6.6 gal	11.8 gal	11.8 gal
Size (iron length w/ shackle)	31 in	31 in	35 in	35 in
Pieces per carton	1	1	1	1

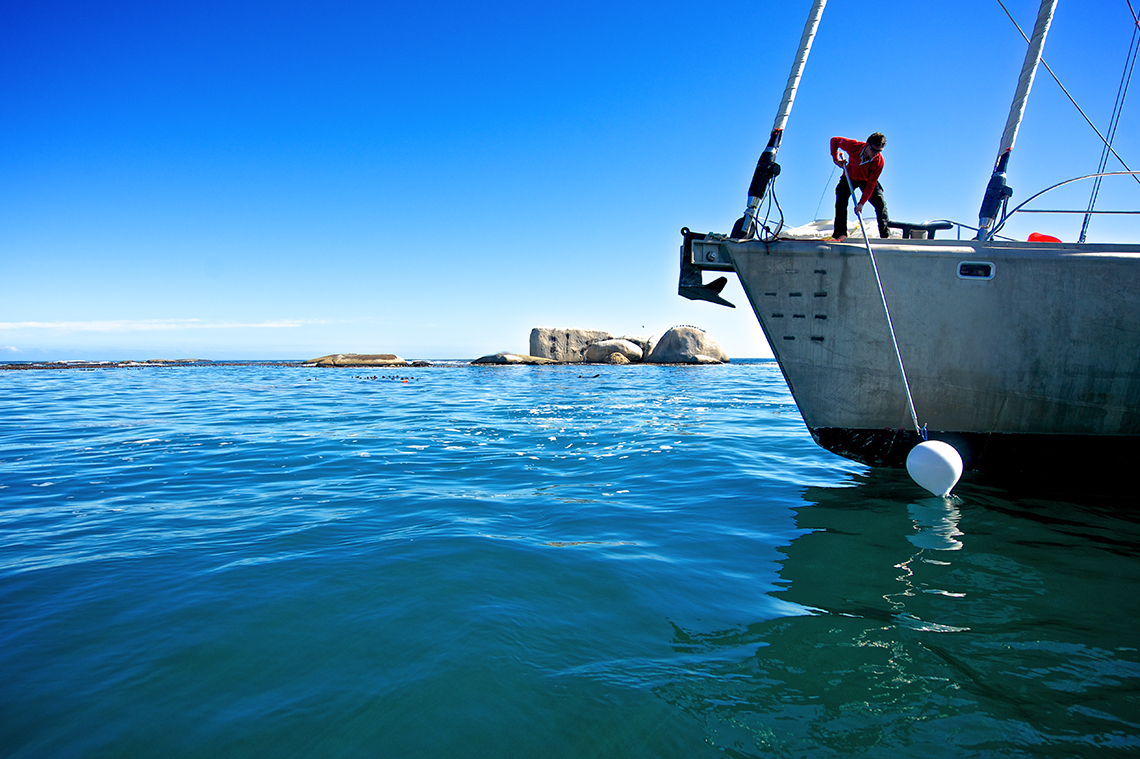

Picking up a mooring buoy with a mooring hook, Polyform CM-2 White Mooring Buoy
